GENERAL CONDITIONS

All goods are delivered Ex Our Factory in Cavaria (VA) Italy.
The term of delivery is not binding and we are not liable for any possible forwarding delay.
Whenever exact forwarding instructions are not specified by the customer we decline any and all responsaility for shipments made under or usual terms.
Goods travel to the risk of the customer.
Packing is out of charge.
Our products are guaranteed for their quality and workmanship and the guarantee covers faulty parts which will be replaced when sent us Free Our Factory.
Possible claims concerning the supply must be sent us within 8 days from receiving the goods.
We are not liable for missing parts anc possibly damages deriving from the forwarding.
The forwarding agent will be liable for any damages of this type.

ART. 1

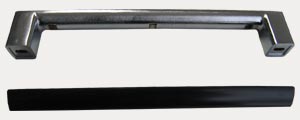

HANDLE FOR DRAWERS

painted or chrome-plated aluminium

DIMENSIONS:

Length mm. 290
Width mm. 26
Height mm. 45
Length mm. 380
Width mm. 26
Height mm. 45

ART. 2

LOCK TYPE 60

Lock Type 60 with bolt

painted or chromed zama


DIMENSIONS:


Length mm. 212
Width mm. 28
Height mm. 35

ART. 3

LOCK TYPE 50

Lock Type 50 with bolt

painted or chromed zama

DIMENSIONS:


Length mm. 220
Width mm. 22
Height mm. 28

ART. 4

LOCK TYPE 3
Beaten h. 25 mm. or h. 0 mm.

painted - chrome plated - natural color - brass

DIMENSIONS:


Length mm. 140
Basis mm. 71x54

ART. 5

LOCK TYPE 4
Beaten h. 25 mm. or h. 0 mm.

painted - chrome plated - natural color - brass

DIMENSIONS:


Length mm. 150
Basis mm. 79x60

ART. 6

LOCK TYPE 5
Beaten h. 25 mm. or h. 0 mm.

painted - chrome plated - natural color - brass


DIMENSIONS:


Length mm. 175
Basis mm. 101x68

ART. 7

LOCK TYPE 80
Beaten h. 25 mm. or h. 0 mm.

painted - chrome plated - natural color - brass




DIMENSIONS:


Length mm. 165
Basis mm. 97x57

ART. 8

LOCK TYPE 900/N
Beaten h. 25 mm. or h. 0 mm.

painted - chrome plated - natural color - brass




DIMENSIONS:


Length mm. 175
Basis mm. 42x61

ART. 9

LOCK TYPE 56
Beaten h. 25 mm. or h. 0 mm.

painted - chrome plated - natural color - brass




DIMENSIONS:


Length mm. 195
Basis mm. 163x61

ART. 10

PADLOCK HOUSING TYPE PT


chrome plated - brass


DIMENSIONS:


Length mm. 63
Width mm. 42
Height mm. 38

ART. 11

PADLOCK HOUSING TYPE N


chrome plated - brass


DIMENSIONS:


Length mm. 94
Width mm. 42
Height mm. 26

ART. 12

HINGE CM. 12
Beaten h. 25 mm.


painted - chrome plated - natural color - brass


DIMENSIONS:


Length mm. 135
Support mm. 71x28

ART. 13

HINGE CM. 14
Beaten h. 25 mm.


painted - chrome plated - natural color - brass


DIMENSIONS:


Length mm. 152
Support mm. 83x32

ART. 14

HINGE CM. 17
Beaten h. 25 mm.


painted - chrome plated - natural color - brass


DIMENSIONS:


Length mm. 190
Support mm. 93x34

ART. 15

WIRE HINGE CM. 12


painted - chrome plated - natural color - brass


DIMENSIONS:


Length mm. 151
Support mm. 60x40

ART. 16

HINGE CM. 20
Beaten h. 25 mm.


painted - chrome plated - natural color - brass


DIMENSIONS:


Length mm. 224
Support mm. 95x38

ART. 17

COATED HINGE CM. 14
Beaten h. 25 mm.


painted - chrome plated - natural color - brass


DIMENSIONS:


  - cm 14
Length mm. 172
Support mm. 87x42

ART. 18

COATED HINGE CM. 23
Beaten h. 25 mm.


painted - chrome plated - natural color - brass


DIMENSIONS:


Length mm. 257
Support mm. 112x47

ART. 19

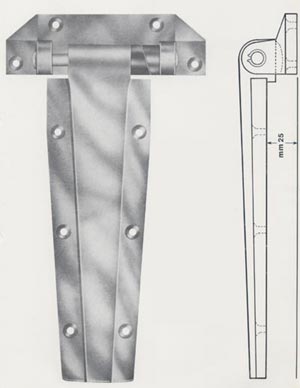

HINGE CM. 30
Beaten h. 25 mm.


with axle box or nylon ramp

painted - chrome plated - natural color - brass


DIMENSIONS:


Length mm. 300
Support mm. 160 x 50

ART. 20

LOCK ZM 200


chrome plated brass


a) without bolt
b) with bolt
c) with bolt and inside hook

DIMENSIONS: Length Width Height
  158 mm 29 mm 40 mm
- Viewed adjustable 60 mm 20 mm 37-47 mm
- Viewed with release (Basis) 55 mm 29 mm 4 mm

ART. 21

LOCK ZM 205 WITH BOLT AND INSIDE LOCK


chrome plated brass




ONE POINT VERSION: AS LATERAL IMAGE
THREE POINTS VERSION: WITH 2 STEPS (normal or big)

ART. 22

LOCK ZM 210

 painted aluminium

A - lock ZM 210
B - lock ZM 210 with bolt
C - lock ZM 210 with bolt and inside hook
D - lock ZM 210 ancillary bolt

DIMENSIONS:


Body mm. 180x35x54 h.
Grip 3 positions mm 200

ART. 23

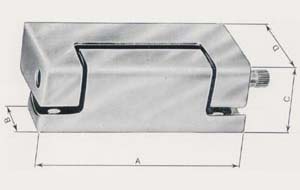

VERTICAL HINGE H35/49/69 OT

chrome plated brass

DIMENSIONS in mm:

Type OT/35

A

100

B

24

C

34

D

35

Type OT/49

A

100

B

24

C

34

D

49

Type OT/69

A

100

B

24

C

34

D

69

ART. 24

VERTICAL HINGE


chrome plated zama


  DIMENSIONS:

TYPE Length Width Height
- H 20 90 mm 18 mm 26 mm
- H 25 90 mm 18 mm 31 mm
- H 29 90 mm 18 mm 35 mm
- H 25 ALL NYLON 90 mm 18 mm 31 mm
- HALF NYLON

ART. 25

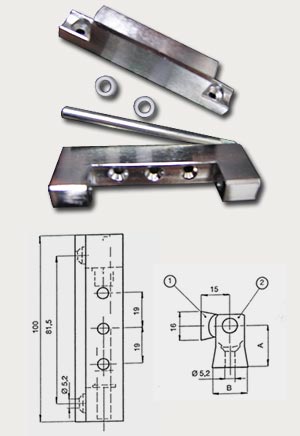

VERTICAL HINGE


chrome plated or painted zama


 DIMENSIONS:

Length Width Basis
 "B"
Total Height Height Hole "A"
100 mm 18,5 mm 30 mm 22,5 mm
100 mm 16,5 mm 22 mm 14,5 mm

ART. 26

WIRE HINGE FOR DOORS


chrome plated brass


 DIMENSIONS:

Length Width Height
110 mm 95 mm 15 mm


ART. 27

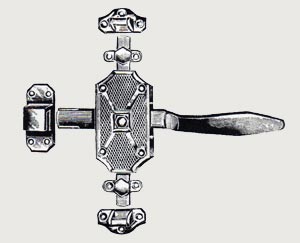

AMERICAN LOCK

FOR CELL DOORS
with inside button

chrome plated brass


DIMENSIONS in mm.:

- BODY Length 250 Width 105 Height 93
- RISC. ADJUST. Basis 88x48
- BUTTON Length 235 Passing Tube 20 Knob 54

ART. 28

DOUBLE LOCK FOR CELL DOORS

Beaten h. 25 mm.
 with inside handle
chrome plated brass

DIMENSIONS in mm.:

- HANDLE Length 295 Basis 118x36
- LOCH Length 100 Width 55 Height 60
- LOCK BASE Length 87 Width 72

ART. 29

LITTLE TRIPLE LOCK WITH BRASS OR IRON RODS


chrome plated brass


DIMENSIONS in mm.:

- Box Length 133 Width 73
- Lever door handle Length 280
- Rods 6x16x920

ART. 30

MEDIUM TRIPLE LOCK WITH BRASS OR IRON RODS
AND WITH INSIDE HANDLE OR NOT

Beaten h. 25 mm. or h. 0 mm.
chrome plated brass


DIMENSIONS in mm.:

- Box Length 152 Width 80
- Handle external door Length 330
- Handle interior door Length 210
- Rods 6x20x980
- King pin passer Length 170 20

ART. 31

BIG TRIPLE LOCK WITH BRASS OR IRON RODS
AND WITH INSIDE HANDLE OR NOT

 Beaten h. 25 mm. or h. 0 mm.
chrome plated brass


DIMENSIONS in mm.:

- Box Length 170 Width 90
- Handle external door Length 385
- Handle interior door Length 250
- Rods 7x22x980
- King pin passer Length 170 20

ART. 32

TRIPLE LOCK FOR CELL DOORD

WITH INSIDE HANDLE
 Beaten h. 25 mm.
chrome plated brass

DIMENSIONS in mm.:

- Handle external door Length 300 Support grip 90x87
- Handle interior door Length 300 Support grip 90x87
- Shutter release Length 100 Width 55 Height 60
- Griddle shutter release Length 87 Width 72

ART. 33

LOCK FOR DOORS WITH INSIDE CENTRAL BOLT


chrome plated brass


DIMENSIONS in mm.:

- Handle external door Length 285 Support 74x87
- Handle interior door Length 267 Support 69x49
- King pin passer Length 220 Square 14

ART. 34

LOCK BLOCK WITH INSIDE RELEASE


chrome plated brass


DIMENSIONS in mm.:

- Corps Length 100 Width 63 Height 60
- Griddle of hookup Length 100 Width 54 Height 11
- Handle interior door Length 85 Basis 70x48
- Basis Handle interior door Passant 17x160

ART. 35

PT DEADLACHT FOR CELL DOORS

WITH INSIDE HANDLE

chrome plated brass
Minimun beaten h. 25 mm.


DIMENSIONS in mm.:

- Handle external door Length 300
- Support handle 140x50
- Shutter release Length 100 Width 55 Height 60
- Griddle shutter release Length 100 Width 47

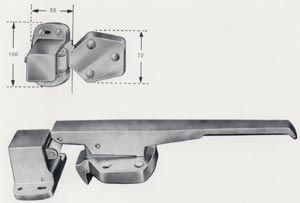

ART. 36

PTG DEADLACHT FOR CELL DOORS

WITH INSIDE HANDLE

chrome plated brass


DIMENSIONS in mm.:

- Handle external door Length 400 Width 68
- Support handle 160x69
- Shutter release Length 110 Width 70 Height 72
- Griddle shutter release Length 110 Width 56

ART. 37

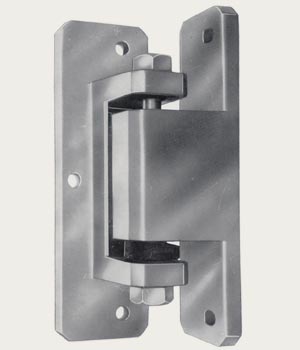

ANTITHEFT PP.T. HINGE H50 OR H65

 WITH AXLE BOX OR NYLON RAMP

FOR SMALL AND MEDIUM BUFFER DOOR
INTERCHANGEABLE RIGHT OR LEFT


chrome plated brass


DIMENSIONS in mm.:

a) Length 143 Width 45 Height da 50 a 60
b) Length 143 Width 45 Height da 65 a 75

ART. 38

P.T. HINGE FOR BUFFER DOOR

WITH AXLE BOX OR NYLON RAMP

INTERCHANGEABLE RIGHT OR LEFT

chrome plated brass


DIMENSIONS in mm.:

Length 180 Width 75 Height da 68 a 88

ART. 39 - Type 7

JOINTS MADE IN BLACK OR WHITE RUBBER

FOR FOOD - TYPE 7

DIMENSIONS in mm.:

Width Height
16 6
17 8
20 6,5
20 8,6

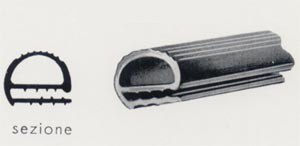

ART. 40 - Type 8

JOINTS MADE IN BLACK OR WHITE RUBBER

FOR FOOD - TYPE 8

DIMENSIONS in mm.:

Width Height
20 13
17,5 11,5

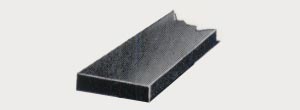

ART. 41 - Type 72

BLACK RUBBER JOINTS SPONGE MOUSSE



DIMENSIONS in mm.:

Width Height
40 10

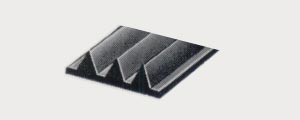

ART. 42 - Type 74

BLACK RUBBER JOINTS DTR



DIMENSIONS in mm.:

Width Height
40 10

ART. 43

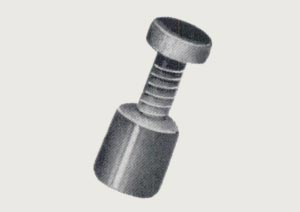

GLASS STOP BOSS


chrome plated brass


DIMENSIONS in mm.:

16 Length 11

ART. 44

GLASS STOP BOSS


chrome plated brass


DIMENSIONS in mm.:

11 Length 28

ART. 45

TWO WAY GLASS STOP

in stainless steel
chrome plated brass screws and rubber gasket



DIMENSIONS in mm.:

Width 10. Height 35

ART. 46

THREE WAY GLASS STOP

in stainless steel
chrome plated brass screws and rubber gasket




DIMENSIONs in mm.:

Width 10. Height 35

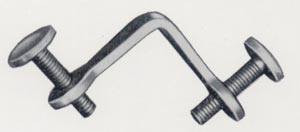

ART. 47

TACKS FOR SHELVES

 chrome plated brass


DIMENSIONS in mm.:

Gambo 11 Head 20 Length 172

ART. 48

COIL SUPPORT

natural aluminium


DIMENSIONS in mm.:

80x82 "U" 21

ART. 49

RACKS

made in stainless steel


DIMENSIONS in mm.:

Length standard 1650 Width 22


ART. 50

CONSOLE IN STAINLESS STEEL




ART. 51

CONSOLE IN STAINLESS STEEL WITH CATCH





ART. 52

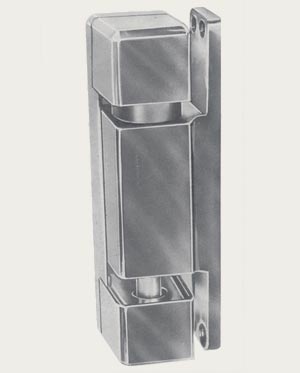

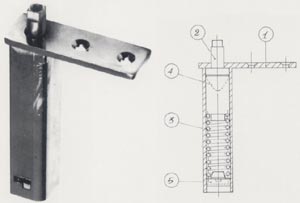

VERTICAL HINGE

for door return

chrome plated zama
or plastic


Long or short pin
Max door weight kg. 25
open 87 or 180




ART. 53

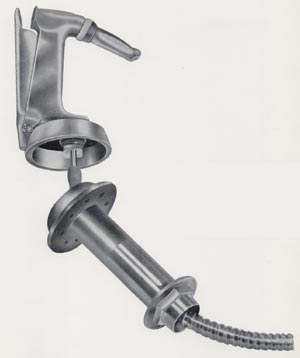

GUN FOR SODA OR WINE


chrome plated brass



DIMENSIONS in mm.:

Basis 67 Height 145

ART. 54

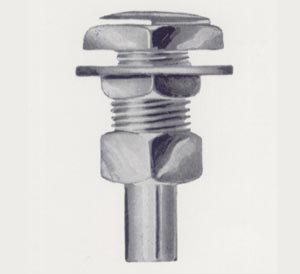

BASIN FEEDER


chrome plated brass



DIMENSIONS:


Corps threaded ⅜" Length mm. 26 S.T. Head hesagon mm. 22

ART. 55

HINGE
Beaten h. 20 mm.



DIMENSIONS in mm.:

Length 86 Width 43 Height 25

ART. 56

HINGE
Beaten h. 20 mm.



DIMENSIONS in mm.:

Length 120 Width 57 Height 25

ART. 57

HINGE
Beaten h. 20 mm.



DIMENSIONS in mm.:

Length 110 Width 57 Height 25

ART. 58

CENTRAL OR LATERAL GLASS STOP HANDLE

With spring and inox pin
without rubber plug


DIMENSIONS in mm.:

- Central Length 89 Width  15,5 Height  22,5
- Lateral Length 74 Width  15,5 Height  22,5

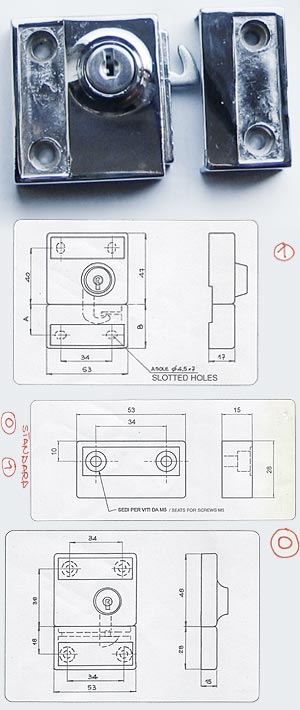

ART. 59

LOCK FOR HORIZONTAL OR VERTICAL DOORS

(O) - zamak lock finishes chromium plated or painted
or
(1) - plastic lock - colors: white - black - grey




ART. 60

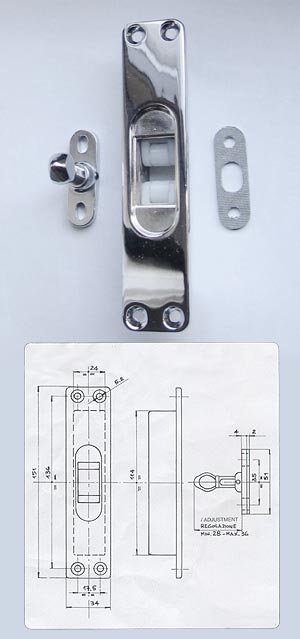

ZAMAK LATCH FOR SLIDING DOORS

Finish: zamak chromium plated

DIMENSIONS in mm.:

Adjustment. min. 28 max 36 Width 34 Height 151

ART. 61

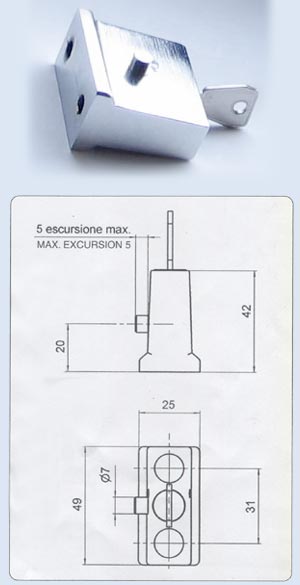

ZAMAK LATCH UNIT FOR COUNTER DOORS

REFRIGERATED DISPLAY CASES AND DOORS

Finishes: chromium plated or painted


DIMENSIONS in mm.:

Length 49 Width 25 Height 42
